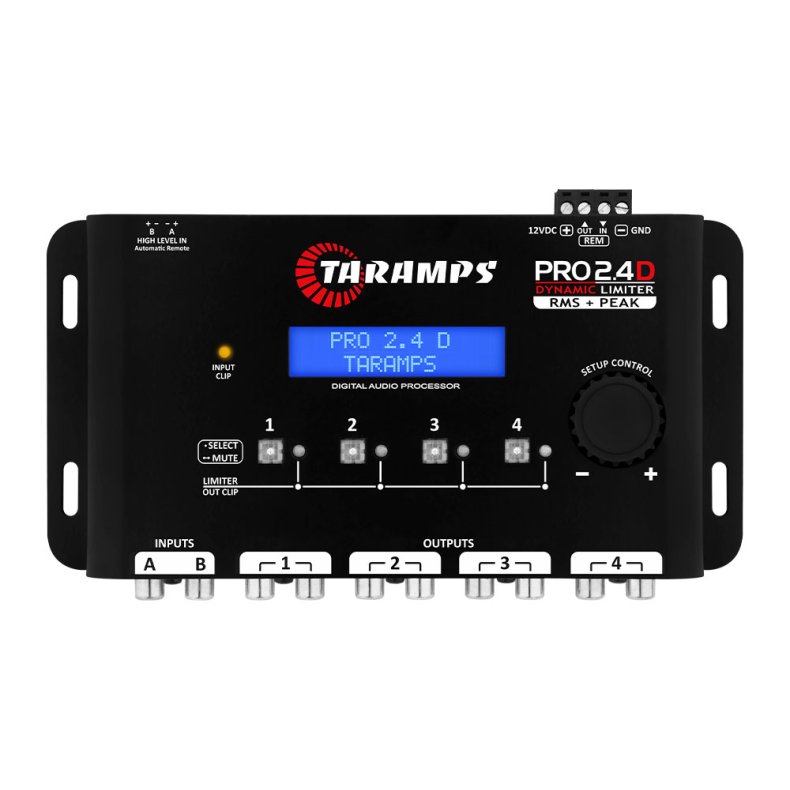

DSP PRO 2.4D

1.599,00 DKK

Vejl. udsalgspris 1.599,00 DKK

Model/Varenr.: PRO24D

Lagerstatus: På fjernlager, 5-10 dages levering

stk.

Beskrivelse

Pro 2.4D er en 4-kanals digital lydprocessor - også kaldet DSP - som ikke kræver PC.
Dynamic Peak model - Med RMS og Peak limiter.
Delefilter med flere filtre, 15-bånds grafisk EQ, 12 foruddefinerede EQ instillinger, parametrisk EQ, justering, routing, fasevender, limiter, input og output clip-indikator, fjernsignaludgang til aktivering af 12V forstærkere, antipop og mange flere funktioner.
Produktvideo: Klik her

Input impedance	RCA: 10K Ohms WIRE: 50 Ohms
Output impedance	47 Ohms
Maximum input level	RCA: 5.9Vpp (2.1V RMS) WIRE: 28Vpp (10V RMS)
Maximum output level	5.9Vpp (2.1V RMS)
Frequency response	10Hz ~ 22KHz (-1dB)
Total Harmonic Distortion	0.01%
Signal to Noise Ratio	>90dB
Crosstalk (separation between channels)	>80dB
Input Channels	2
output channels	4
Routing	Inputs / Outputs: A, B, A+B
General gain	-80 to 0dB
Output gain	-45 to +15dB
cutoff frequency	Variable from 10Hz to 22KHz
Linkwitz Rilley Filters	-12, -18, -24, -30, -36, -42, -48dB/Octave
Butterworth filters	-6,-12,-18, -24, -30, -36, -42, -48dB/Octave
Alignment	Delay: 8.0mS (272cm / 107.09")
Phase	0 / 180°
Adjustable Limiter	Adjustable RMS Limiter: Threshold: -48 to 0dB (8mV to 2VRMS) Attack: 0.1mS to 100mS Hold: 0 to 2000mS Release: 1mS to 2000mS Adjustable PEAK Limiter: Adjustable Threshold / Dynamics: 3 to 36dB Hold: 0 to 2000mS Release: 1mS to 2000mS
Input Equalizer	5 bands, 2 octaves: Central Frequency: EQ.1 - 63Hz (adjustable from 40Hz to 100Hz) EQ.2 - 250Hz (adjustable from 160Hz to 400Hz) EQ.3 - 1000Hz (adjustable from 630Hz to 1600Hz) EQ.4 - 4000Hz (adjustable from 2500Hz to 6300Hz) EQ.5 - 16000Hz (adjustable from 10000Hz to 20000Hz) Attenuation - Gain: -12dB to +12dB Q Factor: 0.4 a 10 12 presets: Flat, Loudness, Bass Boost, Mid-Bass Boost, Treble Boost, Powerful, Electronic, Rock Style, Hip-Hop Style, Pop Music, Vocal e Competition
central frequency	(PT)
Individual MUTE function on outputs	(PT)
Audio Generator (Sine Waveform)	Frequency range: Variable from 10Hz to 22KHz Gain: -60 a 0dB (2mV a 2VRMS) Modes: Fixed Frequency / 3-Speed scanning
Languages	Brazilian Portuguese, English and Spanish
Memory Positions	Factory default + 3 assignable positions Screen saver function: Text up to 15 characters
POWER SUPPLY VOLTAGE (POWER)	9 to 16VDC
Dimensions (W x H x D)	198 x 37 x 113 mm
Weight	0.45Kg
EAN	7908706601305

Download manual
