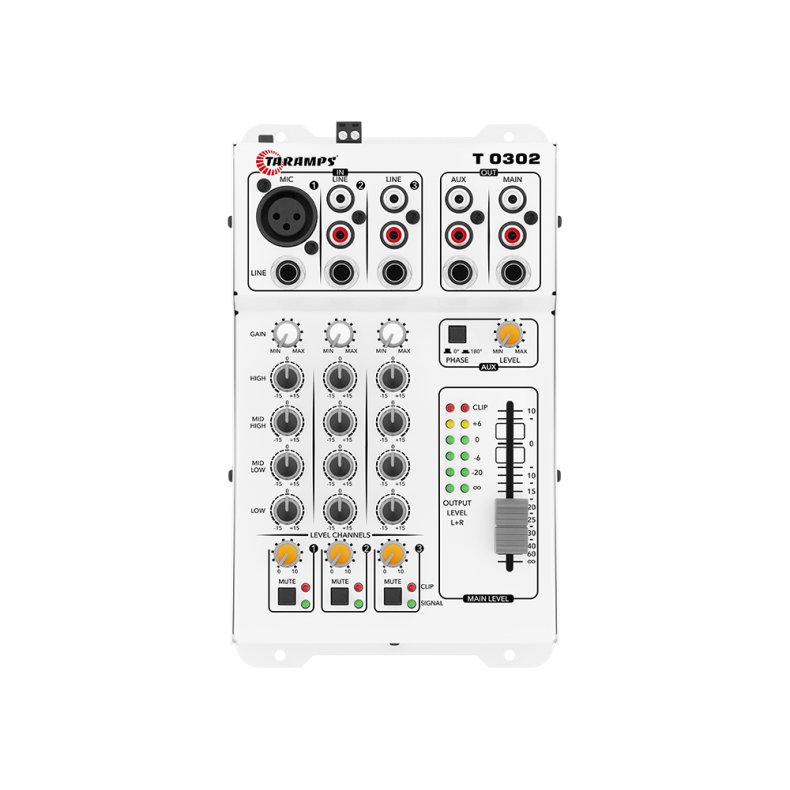

T 0302

1.699,00 DKK

Vejl. udsalgspris 1.699,00 DKK

Model/Varenr.: T0302

Lagerstatus: På fjernlager, 5-10 dages levering

stk.

Beskrivelse

Endelig en 12V mixer der kan det som den skal uden ubrugelige effektpaneler og knapper.
Med 4-bånds EQ på alle kanaler, mute, antipop, REMOTE-IN / REMOTE-OUT og fasevender på AUX-udgangen er dette den ultimate 3-kanals 12V mixer på markedet.

Frequency Response. (-3dB): 2Hz ~ 76Khz

Total Harmonic Distortion: <0,009% (T.H.D.)

Signal to Noise Ratio (SNR): 112dB

Channel 1 input sensitivity:
Mic (XLR) Min: 500mV ~ Max 7mV
Line (P10) Min: 620mV ~ Max 7,6mV

Channel 2/3 Input Sensitivity: Line (TRS/RCA) Min: 2.55V ~ Max: 60mV
High +15dB (18KHz)
Mid High +15dB (2,4KHz)
Mid Low +15dB (240Hz)
LOW +15dB (30Hz)

Channel 1 input impedance:
Mic (XRL): Unbalanced 4K Ohms
Balanced 8K Ohms
Line (TRS): Unbalanced 8.5K Ohms
Balanced 17KOhms

Channel 2 input impedance:
Line (TRS): Unbalanced 10K Ohms
Line (RCA): Unbalanced 10K Ohms

Output impedance:
Main Out (TRS/RCA): 47R
Aux Out (TRS/RCA): 47R

Maximum output level:
Main Out (TRS/RCA): 18 dBu/6.3 Vac
Aux Out (TRS/RCA): 18 dBu/6.3 Vac

Supply Voltage (POWER): 9 ~ 16 Vdc

Maximum consumption: 350 mA

Remote Input (REM Connector): 9 ~ 16 Vdc

Remote Output (REM Connector): 350 mA

Dimensions (WxHxD): 134 × 42 x 220 mm

Weight: 0.70 kg

Download manual
