SMART8

Stykpris v/ 1 stk. 6.999,00 DKK

Stykpris v/ 2 stk. 6.599,00 DKK

Vejl. udsalgspris 6.999,00 DKK

Model/Varenr.: SMART8

Lagerstatus: På fjernlager, 5-10 dages levering

stk.

Beskrivelse

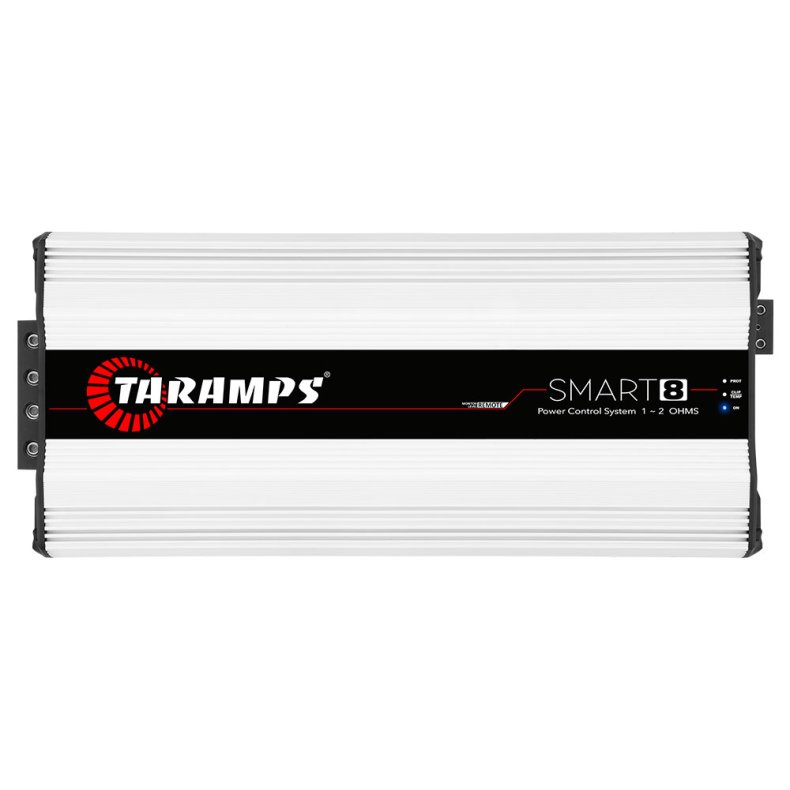

SMART8 er en MULTI-IMPEDANCE Klasse D forstærker der leverer 8.000 Watts RMS stabilt mellem 1Ω og 2Ω i en enkelt kanal.
Link til dyno test: Klik her

Number of Channels	1
Maximum power	Nominal Power @12,6VDC 1 Ohm: 8.000W RMS 2 Ohms: 8.000W RMS 4 Ohms: 5.000W RMS
Input Sensitivity	0,22V ~ 4V
Signal to Noise Ratio	>90dB
Frequency Response	10Hz ~ 5KHz (-3dB)
Crossover High Pass (HPF)	10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover Low Pass (LPF)	90Hz ~ 5KHz (-12dB/8ª) Variable
Bass Boost	Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB
Efficiency	82% @ 1 Ohm \| 86% @ 2 Ohms
Input Impedance	10K Ohms
Protection system	Output short-circuit, low/high supply voltage and Thermal protection
Minimum Supply Voltage	9,5VDC
Maximum Supply Voltage	17VDC
Consumption at rest	8A
Maximum music consumption	@12,6VDC 387A @ 1 Ohm \| 369A @ 2 Ohms
Maximum consumption in sinusoidal signal	774A @ 1 Ohm \| 738A @ 2 Ohms
Dimensions (WxHxD)	228 x 70 x 513 mm
Weight	6,60 kg
EAN	7898556845229

Download manual
