SMART5 BASS

Stykpris v/ 1 stk. 5.699,00 DKK

Stykpris v/ 2 stk. 5.399,00 DKK

Vejl. udsalgspris 5.699,00 DKK

Model/Varenr.: SMART5B

Lagerstatus: På fjernlager, 5-10 dages levering

stk.

Beskrivelse

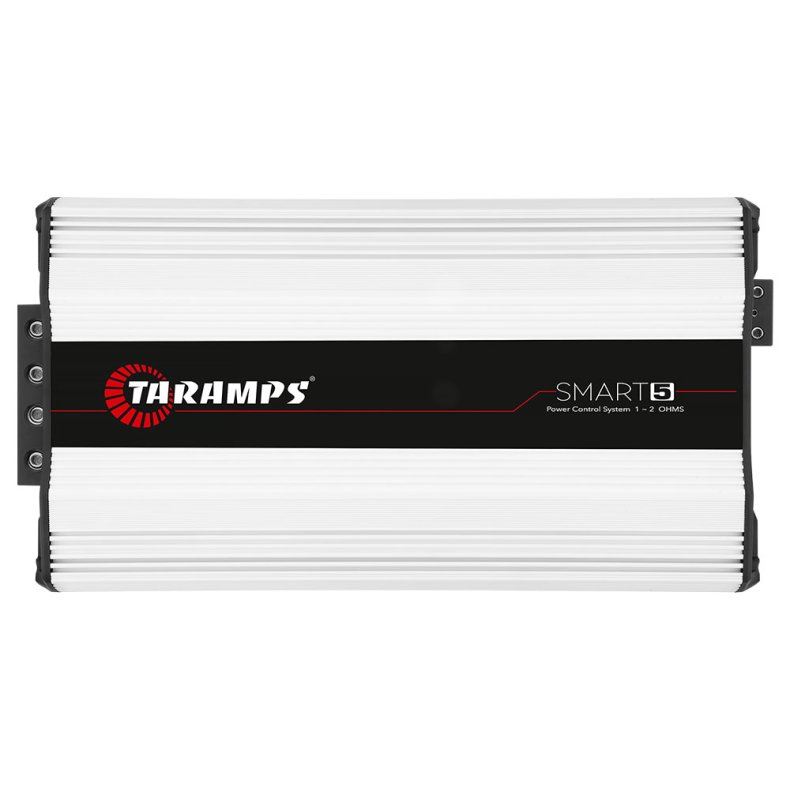

SMART5 BASS er en MULTI-IMPEDANCE Klasse D forstærker der leverer 5.000 Watts RMS stabilt mellem 0,5Ω og 2Ω i en enkelt kanal.
Link til dyno test: Klik her

Operation class	Class D
Number of Channels	1
Maximum power	@ 14,4 VDC - 0,5 ohm: 5000 Watts RMS @ 14,4 VDC - 1 ohm: 5000 Watts RMS @ 14,4 VDC - 2 ohms: 5000 Watts RMS @ 14,4 VDC - 4 ohms: 2700 Watts RMS
Input Sensitivity	4V ~ 0.2V
Signal to Noise Ratio	>90dB
Frequency Response	8Hz ~ 200Hz (-3dB)
Crossover High Pass (HPF)	8Hz ~ 30Hz (-12dB/8ª) Variable
Crossover Low Pass (LPF)	60Hz ~ 200Hz (-12dB/8ª) Variable
bass boost	Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB
Efficiency	76% @ 0.5 ohm 80% @ 1 ohm 84% @ 2 ohms
Input Impedance	10K ohms
Output Impedance	0,5 ~ 2 ohms
Protection system	Short on output Short on output in relation to GND Low impedance protection High/low voltage protection Thermal protection.
Minimum Supply Voltage	9,5VDC
Maximum Supply Voltage	17VDC
Consumption at rest	2,60A
Maximum music consumption	230A @ 0,5 ohm 215.5 @ 1 ohm 210 @ 2 ohms
Maximum consumption in sinusoidal signal	461A @ 0,5 Ohm 431 @ 1 ohm 420 @ 2 ohms
Dimensions (WxHxD)	238 x 71 x 427mm
Weight	5,80Kg
EAN	7898556847483

Download manual
