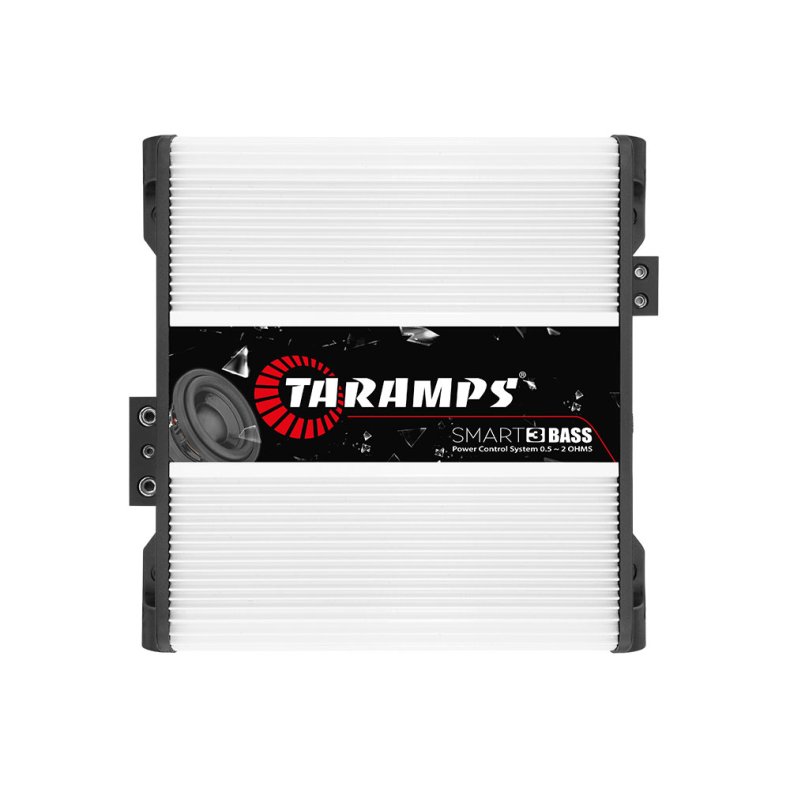

SMART3 BASS

Stykpris v/ 1 stk. 3.699,00 DKK

Stykpris v/ 2 stk. 3.499,00 DKK

Vejl. udsalgspris 3.699,00 DKK

Model/Varenr.: SMART5B

Lagerstatus: På fjernlager, 5-10 dages levering

stk.

Beskrivelse

SMART3 BASS er en MULTI-IMPEDANCE Klasse D forstærker der leverer 3.000 Watts RMS stabilt mellem 0,5Ω og 2Ω i en enkelt kanal.
Link til dyno test: Klik her

Operation class	Class D
Number of Channels	1
Maximum power	@ 14,4 VDC - 0,5 Ohm: 3000 Watts RMS @ 14,4 VDC - 1 Ohm: 3000 Watts RMS @ 14,4 VDC - 2 Ohms: 3000 Watts RMS @ 14,4 VDC - 4 Ohms: 1700 Watts RMS
Input Sensitivity	4V ~ 0,2V
Signal to Noise Ratio	>90dB
Frequency Response	8Hz ~ 200Hz (-3dB)
Crossover High Pass (HPF)	8Hz ~ 30Hz (-12dB/8ª) Variable
Crossover Low Pass (LPF)	60Hz ~ 200Hz (-12dB/8ª) Variable
Bass Boost	Freq.: 35Hz ~ 60Hz Boost: 0 ~ +10dB
Efficiency	75%
Input Impedance	10K ohms
Output Impedance	0,5 ~2 ohms
Protection system	Output short-circuit low/high supply voltage thermal protection
Minimum Supply Voltage	9 VDC
Maximum Supply Voltage	17 VDC
Consumption at rest	1,10A
Maximum music consumption	190A
Maximum consumption in sinusoidal signal	278A
Dimensions (WxHxD)	238 x 71 x 240mm
Weight	3,00Kg
EAN	7898556847414

Download manual
