SMART5

Stykpris v/ 1 stk. 5.499,00 DKK

Stykpris v/ 2 stk. 5.199,00 DKK

Vejl. udsalgspris 5.499,00 DKK

Model/Varenr.: SMART5

Lagerstatus: På fjernlager, 5-10 dages levering

stk.

Beskrivelse

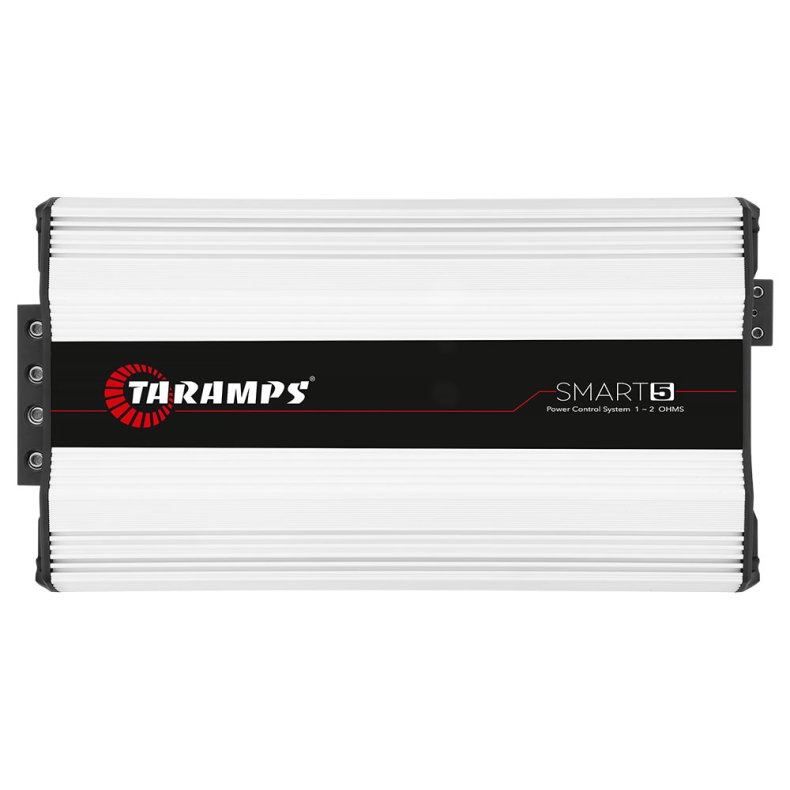

SMART5 er en MULTI-IMPEDANCE Klasse D forstærker der leverer 5.000 Watts RMS stabilt mellem 1Ω og 2Ω i en enkelt kanal.
Link til dyno test: Klik her

Operation class	Class D
Number of Channels	1
Maximum power	@ 12,6 VDC - 1 ohm: 5000 Watts RMS @ 12,6 VDC - 2 ohms: 5000 Watts RMS @ 12,6 VDC - 4 ohms: 2900 Watts RMS
Input Sensitivity	0,22V ~ 4V
Signal to Noise Ratio	>90dB
Frequency Response	10Hz ~ 8KHz (-3dB)
Crossover High Pass (HPF)	10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover Low Pass (LPF)	90Hz ~ 8KHz (-12dB/8ª) Variable
Bass Boost	Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB
Efficiency	84% @ 1 ohm 86% @ 2 ohms
Input Impedance	10K ohms
Output Impedance	1 ~ 2 ohms
Protection system	Output short circuit low/high voltage protection thermal protection.
Minimum Supply Voltage	9,5VDC
Maximum Supply Voltage	16VDC
Consumption at rest	3,60A
Maximum music consumption	236A @ 1 ohm 230A @ 2 ohms
Maximum consumption in sinusoidal signal	472A @ 1 ohm 460A @ 2 ohms
Dimensions (WxHxD)	228 x 70 x 428mm
Weight	5,10Kg
EAN	7898556847391

Download manual
