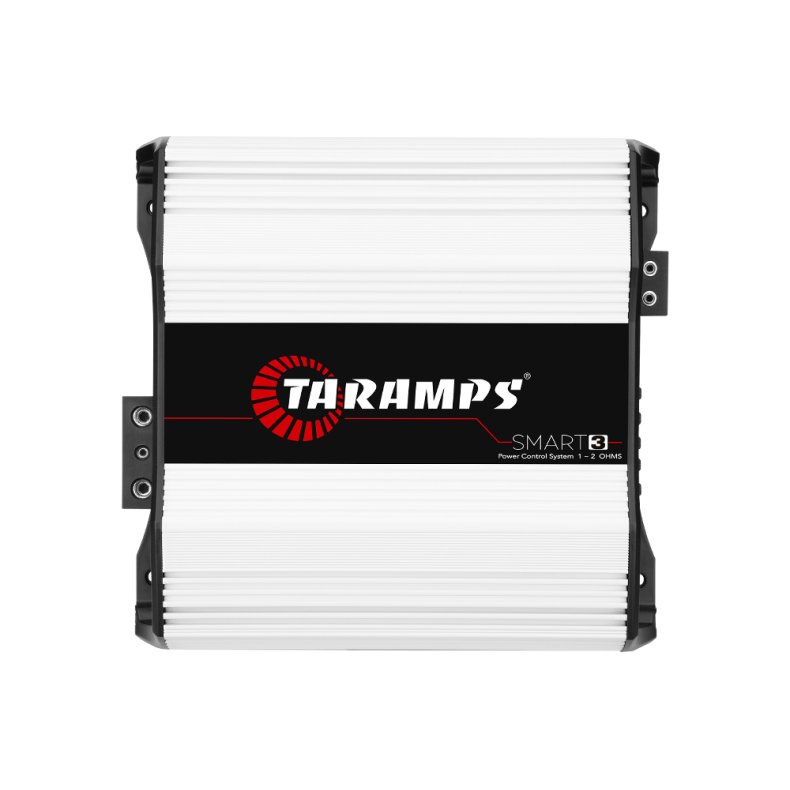

SMART3

3.499,00 DKK

Vejl. udsalgspris 3.499,00 DKK

Model/Varenr.: SMART3

Lagerstatus: På fjernlager, 10-14 dages levering

stk.

Beskrivelse

SMART3 er en MULTI-IMPEDANCE Klasse D forstærker der leverer 3.000 Watts RMS stabilt mellem 1Ω og 2Ω i en enkelt kanal.
Intro tilbud: Gratis M1 LED MONITOR medfølger. (værdi 499,-)
Link til dyno test: Klik her

Operation class	Class D
Number of Channels	1
Maximum power	@ 12,6 VDC - 1 Ohm: 3000 Watts RMS @ 12,6 VDC - 2 Ohms: 3000 Watts RMS @ 12,6 VDC - 4 Ohms: 2000 Watts RMS
Input Sensitivity	0,22V ~ 4V
Signal to Noise Ratio	>90dB
Frequency Response	10Hz ~ 10KHz (-3dB)
Crossover High Pass (HPF)	10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover Low Pass (LPF)	90Hz ~ 10KHz (-12dB/8ª) Variable
Bass Boost	Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB
Efficiency	79%
Input Impedance	10K Ohms
Output Impedance	1 ~2 ohms
Protection system	Output short circuit low/high voltage protection thermal protection
Minimum Supply Voltage	9VDC
Maximum Supply Voltage	16VDC
Consumption at rest	2,40A
Maximum music consumption	150A
Maximum consumption in sinusoidal signal	300A
Dimensions (WxHxD)	228 x 70 x 238 mm
Weight	2,60kg
EAN	7898556845205

Download manual
