MD 8000.1

5.499,00 DKK

Vejl. udsalgspris 5.499,00 DKK

Modstand:

1Ω

2Ω

Vælg Variant

stk.

Beskrivelse

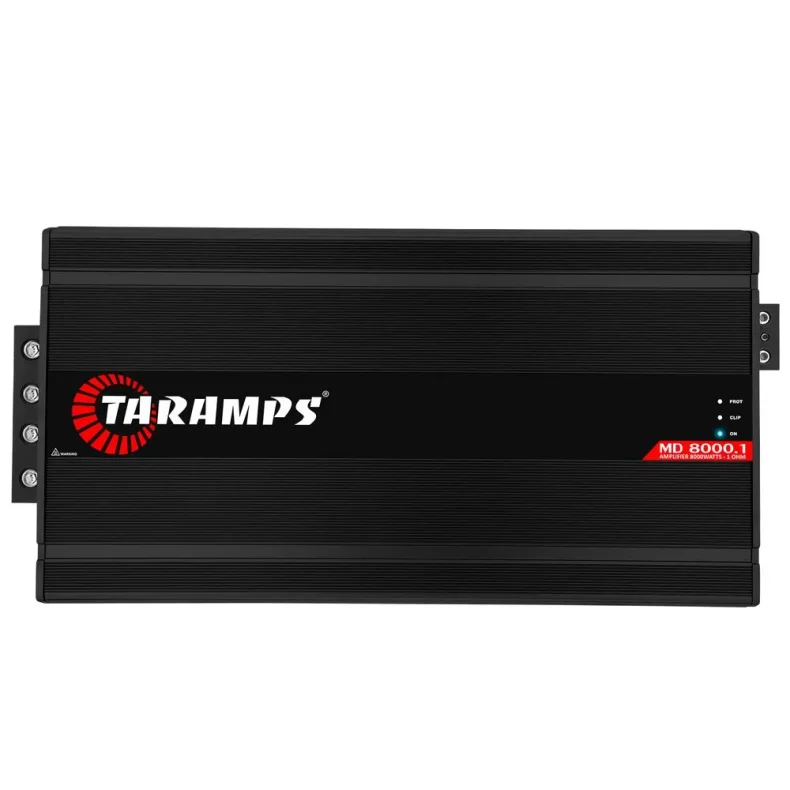

MD 8000.1 er en KLASSE D forstærker der leverer 8.000 Watts RMS i en enkelt kanal.
Fås i 1Ω og 2Ω versioner.
Link til dyno test: Klik her

1Ω version:

Operation class	D
Number of Channels	1
Maximum power	@ 12.6 VDC - 1 OHM: 8000W RMS @ 12.6 VDC - 2 OHMS: 4800W RMS
Input Sensitivity	0.22V ~ 4V
Signal to Noise Ratio	>90dB
Frequency Response	10Hz ~ 8KHz (-3dB)
Crossover high pass (HPF)	10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF)	90Hz ~ 10KHz (-12dB/8ª) Variable
Bass boost	Freq.: 35Hz ~ 55Hz Boost: 0 ~10dB
Efficiency	82%
Input Impedance	10K Ohms
Protection system	Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
Minimum Supply Voltage	9.5VDC
Maximum Supply Voltage	17VDC
Consumption at rest	2.90A
Maximum music consumption	387A
Maximum consumption in sinusoidal signal	774A
Dimensions (WxHxD)	228 x 70 x 446 mm
Weight	5.60Kg
EAN	7898556848886

2Ω version:

Operation class	D
Number of Channels	1
Maximum power	@ 12.6 VDC - 2 OHMS: 8000W RMS @ 12.6 VDC - 4 OHMS: 4800W RMS
Input Sensitivity	0.22V ~ 4V
Signal to Noise Ratio	>90dB
Frequency Response	10Hz ~ 8KHz (-3dB)
Crossover high pass (HPF)	10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF)	90Hz ~ 10KHz (-12dB/8ª) Variable
Bass boost	Freq.: 35Hz ~ 55Hz Boost: 0 ~10dB
Efficiency	85%
Input Impedance	10K Ohms
Protection system	Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
Minimum Supply Voltage	9.5VDC
Maximum Supply Voltage	17VDC
Consumption at rest	2.90A
Maximum music consumption	374A
Maximum consumption in sinusoidal signal	748A
Dimensions (WxHxD)	228 x 70 x 446 mm
Weight	5.60Kg
EAN	7898556848893

Download manual
