MD 5000.1

4.899,00 DKK

Vejl. udsalgspris 4.899,00 DKK

Modstand:
Vælg Variant
stk.

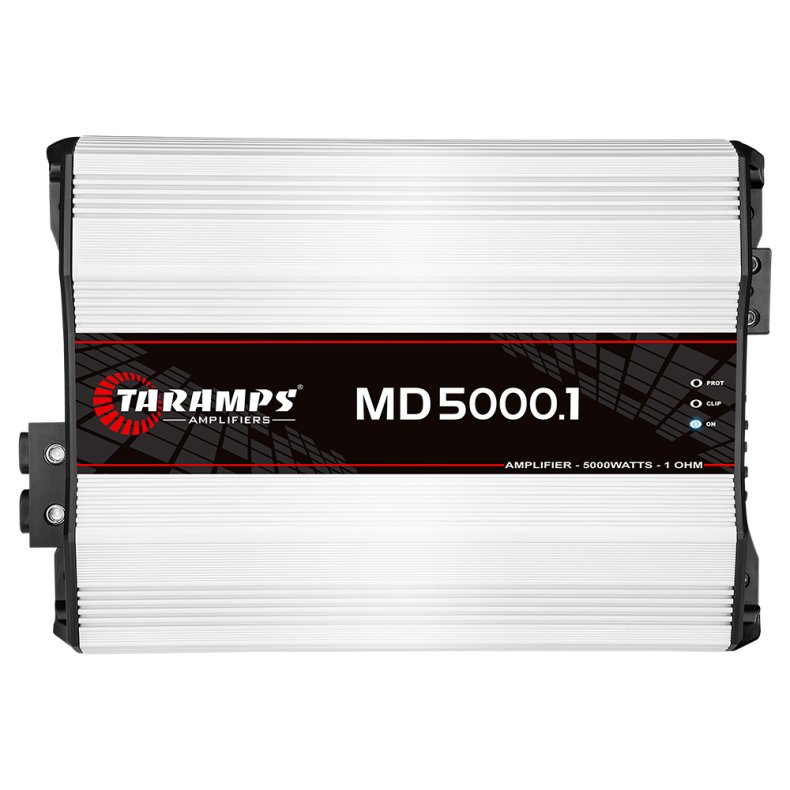

MD 5000.1 er en KLASSE D forstærker der leverer 5.000 Watts RMS i en enkelt kanal.
Fås i 1Ω og 2Ω versioner.
Link til 1Ω dyno test: Klik her
Link til 2Ω dyno test: Klik her



1Ω version:

Operation class D
Number of Channels 1
Maximum power @ 12,6 VDC - 1 OHMS: 5000W RMS
@ 12,6 VDC - 2 OHMS: 3200W RMS
Input Sensitivity 220mV
Signal to Noise Ratio >90dB
Frequency Response 10Hz ~ 10KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 90Hz ~ 10KHz (-12dB/8ª) Variable
Bass boost Freq.: 35Hz ~ 55Hz
Boost: 0 ~10dB (50Hz)
Efficiency 81%
Input Impedance 15K Ohms
Protection system Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.20A
Maximum music consumption 244.50A
Maximum consumption in sinusoidal signal 489A
Dimensions (WxHxD) 228 x 70 x 327mm
Weight 4.22Kg
EAN 7898556844697




2Ω version:

Operation class D
Number of Channels 1
Maximum power @ 12,6 VDC - 2 OHMS: 5000W RMS
@ 12,6 VDC - 4 OHMS: 3200W RMS
Input Sensitivity 220mV
Signal to Noise Ratio >90dB
Frequency Response 10Hz ~ 10KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 90Hz ~ 10KHz (-12dB/8ª) Variable
Bass boost Freq.: 35Hz ~ 55Hz
Boost: 0 ~10dB (50Hz)
Efficiency 87%
Input Impedance 15K Ohms
Protection system Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.40A
Maximum music consumption 230.50A
Maximum consumption in sinusoidal signal 461A
Dimensions (WxHxD) 228 x 70 x 327mm
Weight 4.22Kg
EAN 7898556844499


Download manual
