MD 3000.1

3.199,00 DKK

Vejl. udsalgspris 3.199,00 DKK

Modstand:
Vælg Variant
stk.

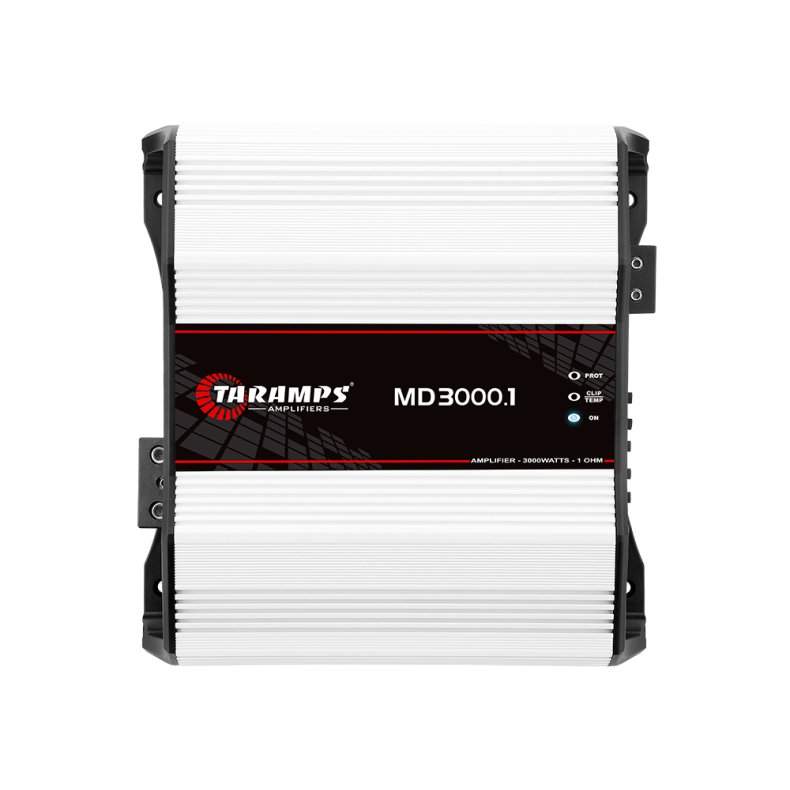

MD 3000.1 er en FULL RANGE Klasse D forstærker der leverer 3.000 Watts RMS i en enkelt kanal.
Fås i 1Ω, 2Ω og 4Ω versioner.
Link til 1Ω dyno test: Klik her
Link til 2Ω dyno test: Klik her



1Ω version:

Operation class Class D
Number of Channels 1
Maximum power @ 12.6 VDC - 1 OHM: 3.000W RMS
@ 12.6 VDC - 2 OHMS: 1.920W RMS
Input Sensitivity 220 mV
Signal to Noise Ratio >90dB
Frequency Response 10Hz ~ 18KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable
Bass boost 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55)
Efficiency 79%
Input Impedance 15K Ohms
Output Impedance 1 OHM
Protection system Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.0 A
Maximum music consumption 150 A
Maximum consumption in sinusoidal signal 300 A
Dimensions (WxHxD) 228 x 70 x 218mm
Weight 2.50kg
EAN 7898556844628




2Ω version:

Operation class Class D
Number of Channels 1
Maximum power @ 12.6 VDC - 2 OHMS: 3000W RMS
@ 12.6 VDC - 4 OHMS: 1920W RMS
Input Sensitivity 220 mV
Signal to Noise Ratio >90dB
Frequency Response 10Hz ~ 18KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable
Bass boost 0 ~ 10dB (50Hz) Freq. Variable (35 ~ 55)
Efficiency 82%
Input Impedance 15K Ohms
Output Impedance 2 OHMS
Protection system Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection.
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.50 A
Maximum music consumption 145 A
Maximum consumption in sinusoidal signal 290 A
Dimensions (WxHxD) 228 x 70 x 218mm
Weight 2.50kg
EAN 7898556844710




4Ω version:

Operation class Class D
Number of Channels 1
Maximum power @ 12.6 VDC - 4 OHMS: 3000W RMS
@ 12.6 VDC - 8 OHMS: 1920W RMS
Input Sensitivity 220 mV
Signal to Noise Ratio >90dB
Frequency Response 10Hz ~ 18KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 90Hz ~ 18KHz (-12dB/8ª) Variable
bass boost 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55)
Efficiency 85%
Input Impedance 15K Ohms
Output Impedance 4 OHMS
protection system Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection.
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.2 A
Maximum music consumption 138.8 A
Maximum consumption in sinusoidal signal 277.7 A
Dimensions (WxHxD) 228 x 70 x 218mm
Weight 2.50kg
EAN 7898556844666


Download manual
