MD 1200.1

2.499,00 DKK

Vejl. udsalgspris 2.499,00 DKK

Modstand:
Vælg Variant
stk.

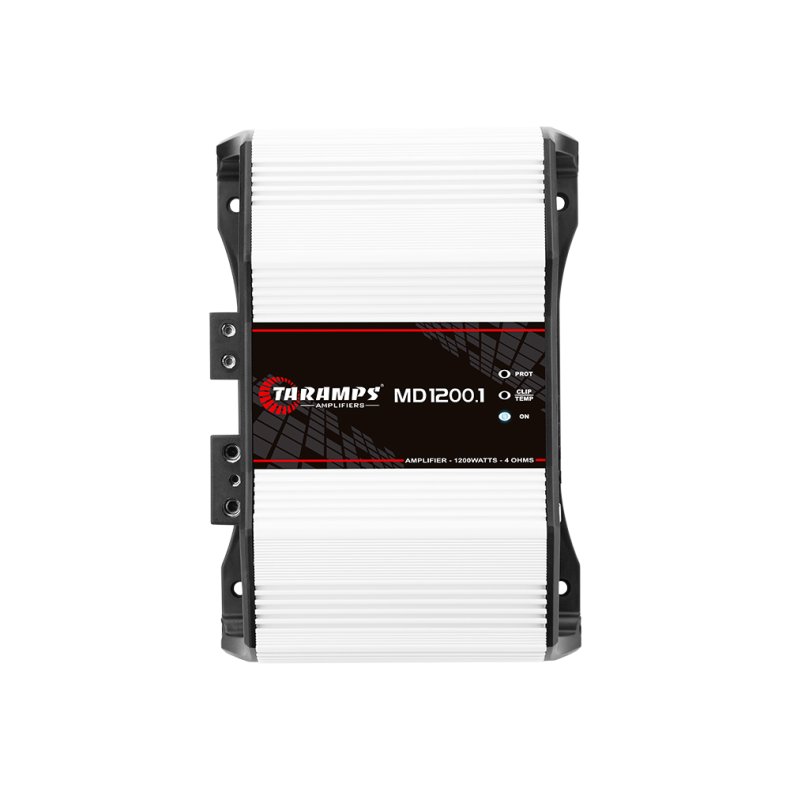

MD 1200.1 er en FULL RANGE Klasse D forstærker der leverer 1.200 Watts RMS i en enkelt kanal.
Fås i 1Ω, 2Ω og 4Ω versioner.
Link til 1Ω dyno test: Klik her
Link til 2Ω dyno test: Klik her



1Ω version:

Operation class Class D
Number of Channels 1
Maximum power @ 12.6 VDC - 1 OHM: 1200W RMS
@ 12.6 VDC - 2 OHMS: 1000W RMS
Input Sensitivity 220mV
Signal to Noise Ratio >88dB
Frequency Response 10Hz to 20KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 80Hz ~ Full (-12dB/8ª) Variable
Bass boost 0 ~ 10.5dB(50Hz)
Thermal Management Smart Cooler (fan controlled by temperature or audio, with 3 speeds)
Efficiency 77%
Input Impedance 10K ohms
Output Impedance 1 ohm
Protection system Output Short circuit
High or Low supply voltage
Thermal protection
Minimum Supply Voltage 9 VDC
Maximum Supply Voltage 16 VDC
Consumption at rest 1.7A
Maximum music consumption @ 12,6 VDC: 62A
Maximum consumption in sinusoidal signal @ 12,6VDC: 124A
Dimensions (WxHxD) 228 x 70 x 158mm
Weight 1.80Kg
EAN 7898556844802




2Ω version:

Operation class Class D
Number of Channels 1
Maximum power @ 12.6 VDC - 2 OHMS: 1200W RMS
@ 12.6 VDC - 4 OHMS: 800W RMS
Input Sensitivity 220mV
Signal to Noise Ratio >88dB
Frequency Response 10Hz ~ 20KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 80Hz (-12dB/8ª) Variável
Crossover low pass (LPF) 80Hz ~ Full (-12dB/8ª) Variável
Bass boost 0 ~ 10.5dB (50Hz)
Thermal Management Smart Cooler (fan controlled by temperature or audio, with 3 speeds)
Efficiency 80%
Input Impedance 10K OHMS
Output Impedance 2 OHMS
Protection system Output short circuit / High or Low supply voltage / Thermal protection
Minimum Supply Voltage 9 VDC
Maximum Supply Voltage 16 VDC
Consumption at rest 1.8 A
Maximum music consumption 60 A
Maximum consumption in sinusoidal signal 119 A
Dimensions (WxHxD) 228 x 70 x 158mm
Weight 1.80Kg
EAN 7898556844604




4Ω version:


Operation class D
Number of Channels 1
Maximum power @ 12.6 VDC - 4 OHMS: 1200W RMS
@ 12.6 VDC - 8 OHMS: 855W RMS
Input Sensitivity 220mV
Signal to Noise Ratio >88dB
Frequency Response 10Hz ~ 20KHz (-3dB)
Crossover high pass (HPF) 10Hz ~80Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 80Hz ~ Full (-12dB/8ª) Variable
Bass boost 0 ~ 10.5dB (50Hz)
Thermal Management Smart Cooler (fan controlled by temperature or audio, with 3 speeds)
Efficiency 82%
Input Impedance 10K Ohms
Output Impedance 4 Ohms
Protection system Output short circuit / High or Low supply voltage / Thermal protection
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.8A
Maximum music consumption 58A
Maximum consumption in sinusoidal signal 116A
Dimensions (WxHxD) 228 x 70 x 158mm
Weight 1.80kg
EAN 7898556844819



Download manual
