DS 800X2

1.999,00 DKK

Vejl. udsalgspris 1.999,00 DKK

Model/Varenr.: DS800X2

Lagerstatus: På fjernlager, 5-10 dages levering

stk.

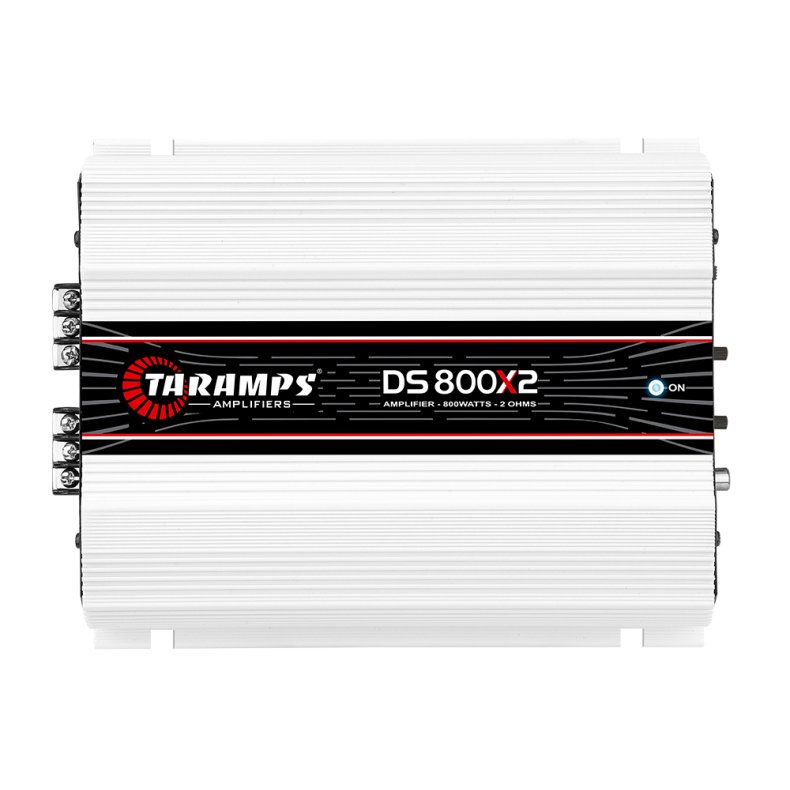

DS 800X2 er en FULL RANGE Klasse D forstærker der leverer 800 Watts RMS fordelt på 2 kanaler.

Operation class	Class D
Number of Channels	2
Maximum power	@ 12.6 VDC - 2 OHMS: 800WRMS (2 x 400WRMS) @ 12.6 VDC - 4 OHMS: 500WRMS (2 x 250WRMS) @ 12.6 VDC - 8 OHMS: 240WRMS (2 x 120W) 1 Bridgeable CHANNELS: @12.6 VDC - 4 OHMS: 800WRMS (1 x 800WRMS)
Input Sensitivity	250mV
Signal to Noise Ratio	>96dB
Frequency Response	10Hz to 22KHz (-3dB)
Crossover high pass (HPF)	80Hz to 2.2KHz (-6dB/8a) Variable
Crossover low pass (LPF)	80Hz (-12dB/8ª) Fixed
Efficiency	83%
Input Impedance	18K Ohms
Output Impedance	2 Ohms
Protection system	output overload
Minimum Supply Voltage	9VDC
Maximum Supply Voltage	16VDC
Consumption at rest	@12.6 VDC: 0.85A
Maximum music consumption	@12.6 VDC: 38A
Maximum consumption in sinusoidal signal	77A
Dimensions (WxHxD)	173 x 52 x 227mm
Weight	1.43kg
EAN	7898556844048
