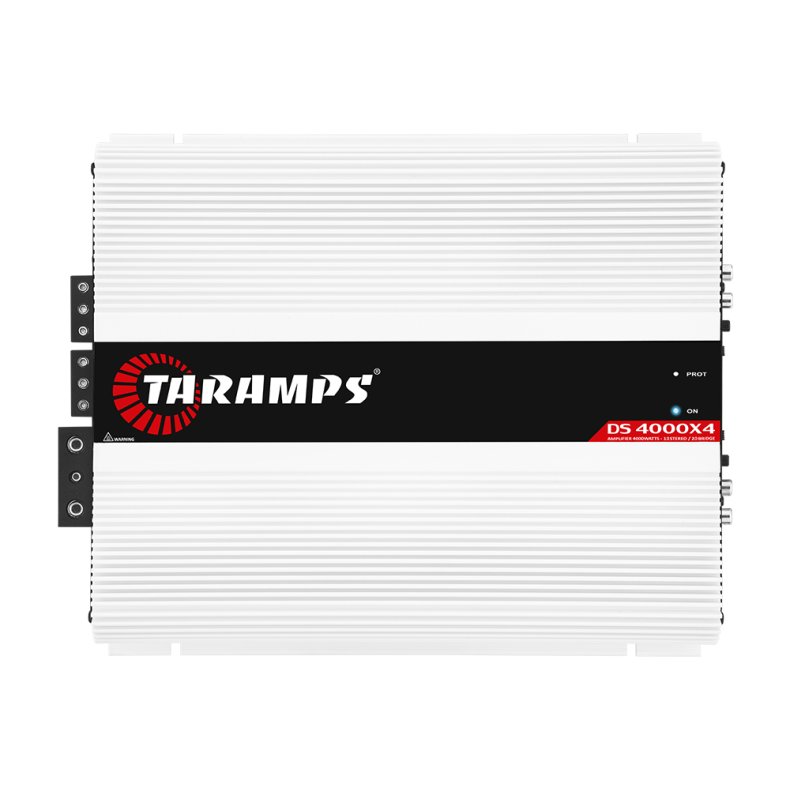

DS 4000X4

DS 4000X4

DS 4000X4

4.499,00 DKK

Vejl. udsalgspris 4.499,00 DKK

Modstand:

1Ω

2Ω

Vælg Variant

stk.

Beskrivelse

DS 4000X4 er en FULL RANGE Klasse D forstærker der leverer 4.000 Watts RMS fordelt på 4 kanaler.
Fås i både 1Ω og 2Ω version.

1Ω version:

Operation class	D
Number of Channels	4
Maximum power	@ 14,4 VDC - 1 Ohm: 4000W RMS (4 x 1000W RMS) @ 14,4 VDC - 2 Ohms: 2400W RMS (4 x 600W RMS) 2 Bridged Channels 2 OHMS: (2 x 2000WRMS)
Input Sensitivity	(Gain = Max): 250mV (RCA) / 3V (WIRE) (Gain = Max): 4V (RCA) / >10V (WIRE)
Signal to Noise Ratio	>86dB
Frequency Response	8Hz~20KHz (-3dB)
Crossover high pass (HPF)	90Hz (-12dB/8ª) Fixed
Crossover low pass (LPF)	90Hz (-12dB/8ª) Fixed
Protection system	Output Short Circuit
Minimum Supply Voltage	9VDC
Maximum Supply Voltage	17VDC
Consumption at rest	2.5A
Maximum music consumption	185A
Maximum consumption in sinusoidal signal	370A
Dimensions (WxHxD)	268 x 72 x 333mm
Weight	5.06Kg
EAN	7898556849258

2Ω version:

Operation class	D
Number of Channels	4
Maximum power	@ 14,4 VDC - 2 Ohms: 4000W RMS (4 x 1000W RMS) @ 14,4 VDC - 4 Ohms: 2500W RMS (4 x 625W RMS) 2 Bridged Channels 4 OHMS: (2 x 2000WRMS)
Input Sensitivity	(Gain = Max): 250mV (RCA) / 3V (WIRE) (Gain = Max): 4V (RCA) / >10V (WIRE)
Signal to Noise Ratio	>86dB
Frequency Response	8Hz~20KHz (-3dB)
Crossover high pass (HPF)	90Hz (-12dB/8ª) Fixed
Crossover low pass (LPF)	90Hz (-12dB/8ª) Fixed
Protection system	Output Short Circuit
Minimum Supply Voltage	9VDC
Maximum Supply Voltage	17VDC
Consumption at rest	2.8A
Maximum music consumption	160A
Maximum consumption in sinusoidal signal	320A
Dimensions (WxHxD)	268 x 72 x 333mm
Weight	5.06Kg
EAN	7898556849197

Download manual
