DS 800X4

1.999,00 DKK

Vejl. udsalgspris 1.999,00 DKK

Modstand:
Vælg Variant
stk.

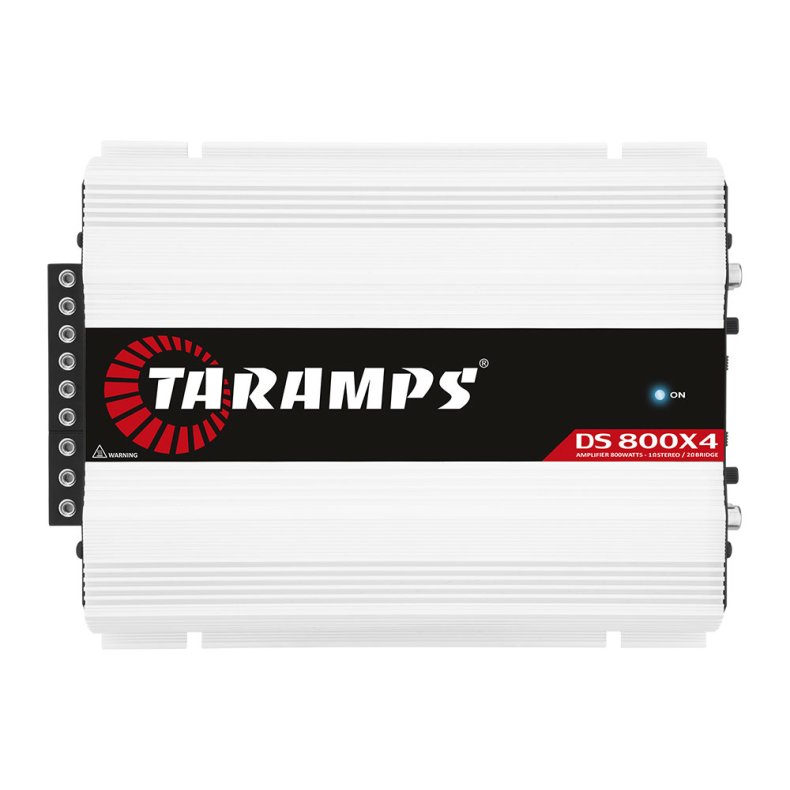

DS 800X4 er en FULL RANGE Klasse D forstærker der leverer 800 Watts RMS fordelt på 4 kanaler.
Fås i både 1Ω og 2Ω version.



1Ω version:

Operation class D
Number of Channels 4
Maximum power @ 12,6 VDC - 1 OHM: 800W RMS (4 x 200W RMS)
@ 12,6 VDC - 2 OHMS: 544W RMS (4 x 136W RMS)
2 Bridgeable CHANNELS: @ 12,6 VDC 2 Ohms 400W RMS (2 x 400W RMS)
Input Sensitivity 250mV
Signal to Noise Ratio >88dB
Frequency Response 10Hz ~ 22KHz (-3dB)
Crossover high pass (HPF) 90Hz (-12dB/8ª) Fixed
Crossover low pass (LPF) 90Hz (-12dB/8ª) Fixed
Input Impedance 10K Ohms
Protection system Output overload
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.0A
Maximum music consumption 51A
Maximum consumption in sinusoidal signal 102A
Dimensions (WxHxD) 173 x 52 x 227mm
Weight 1.43kg
EAN 7898556844826




2Ω version:

Operation class D
Number of Channels 4
Maximum power @ 12,6 VDC - 2 OHMS: 800W RMS (4 x 200W RMS)
@ 12,6 VDC - 4 OHMS: 544W RMS (4 x 136W RMS)
2 Bridgeable CHANNELS: @ 12,6 VDC 4 Ohms 400W RMS (2 x 400W RMS)
Input Sensitivity 250mV
Signal to Noise Ratio >88dB
Frequency Response 10Hz ~ 22KHz (-3dB)
Crossover high pass (HPF) 90Hz (-12dB/8ª) Fixed
Crossover low pass (LPF) 90Hz (-12dB/8ª) Fixed
Input Impedance 10K Ohms
Protection system Output overload
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.4A
Maximum music consumption 43A
Maximum consumption in sinusoidal signal 86A
Dimensions (WxHxD) 173 x 52 x 227mm
Weight 1.43kg


Download manual
